Filter Nozzles
GRE offers 2 size of filter nozzle model 102 and model 202.
Both can be used with sand filter, resin filter or others media filter tank.
GRE filter nozzle deliver high flow rate and strong.
It will not be cracked when impacted with gravel.

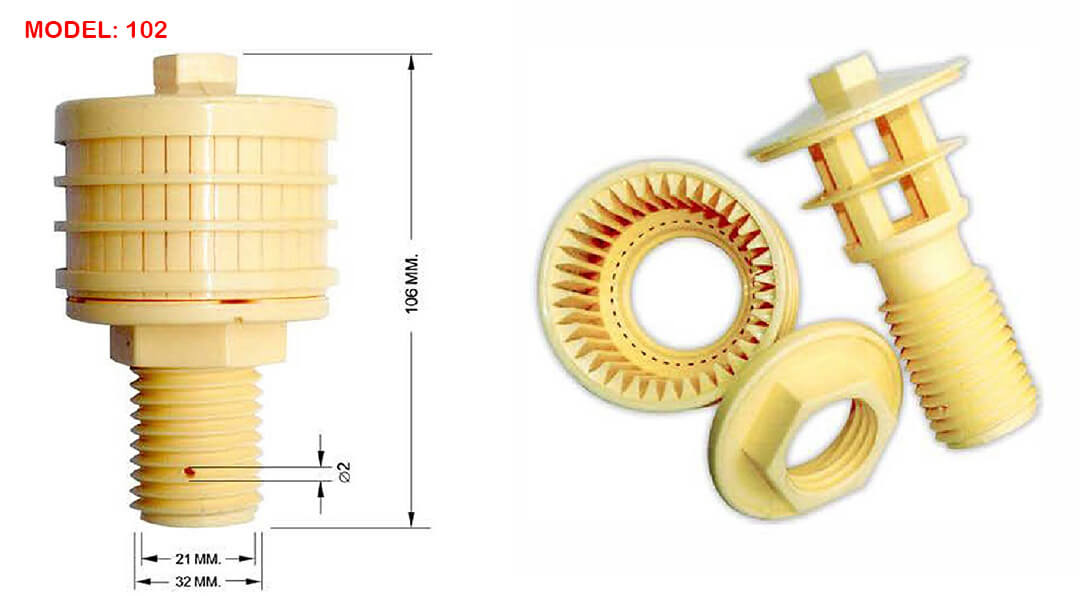

MODEL 102
Filter Nozzles Specification
MATERIAL: POLYPROPYLENE
THREAD: 3.3 mm.
OUTER DIA: 32 mm.
INNER DIA: 21 mm.
LENGTH: 54 mm.
SHAFT LENGTH: 52 mm.

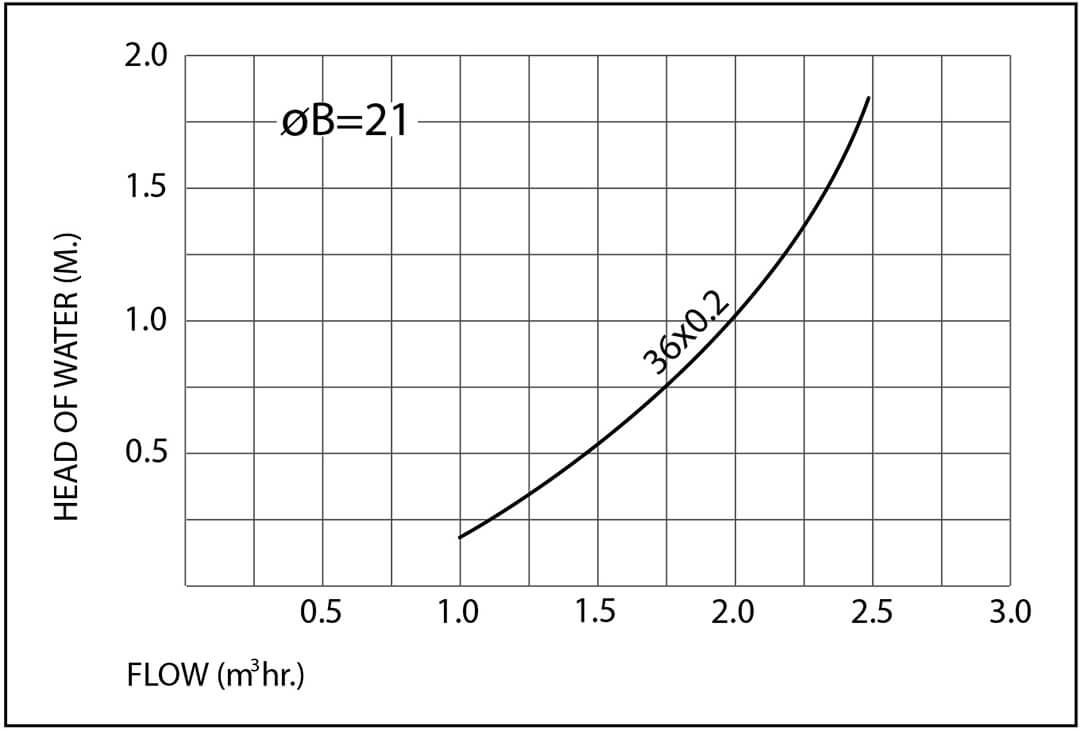

STANDARD FLOW: Standard 1.0 cum/hr/unit at 0.25 M Ws, Maximum 2.4 cum/hr/unit at 1.50 M Ws.

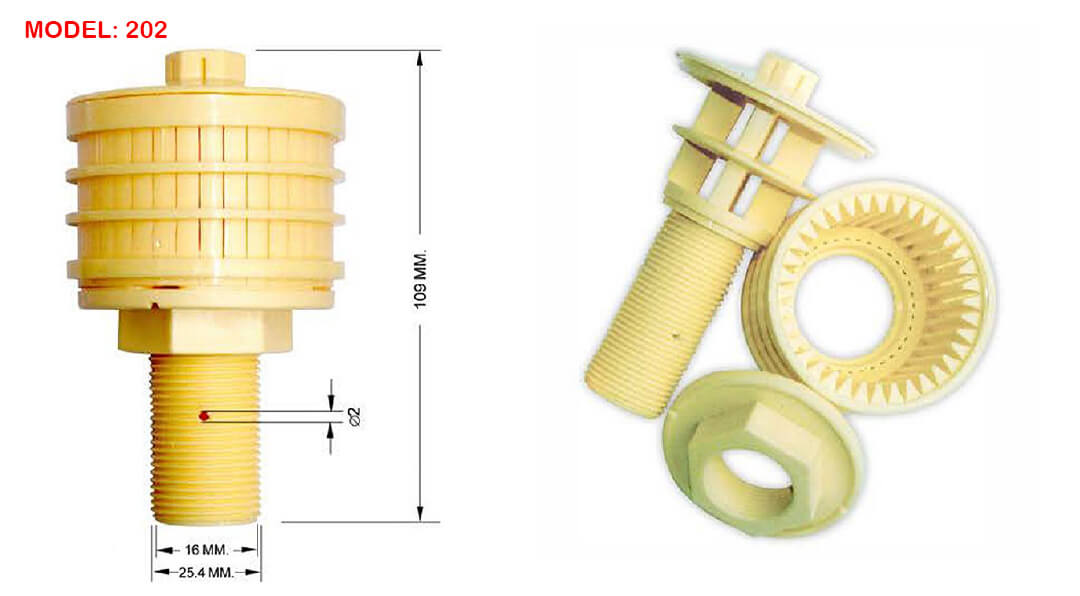

MODEL 202
Filter Nozzles Specification
MATERIAL: POLYPROPYLENE
THREAD: 1.6 mm.
OUTER DIA: 25.4 mm.
INNER DIA: 16 mm.
LENGTH: 54 mm.
SHAFT LENGTH: 55 mm.

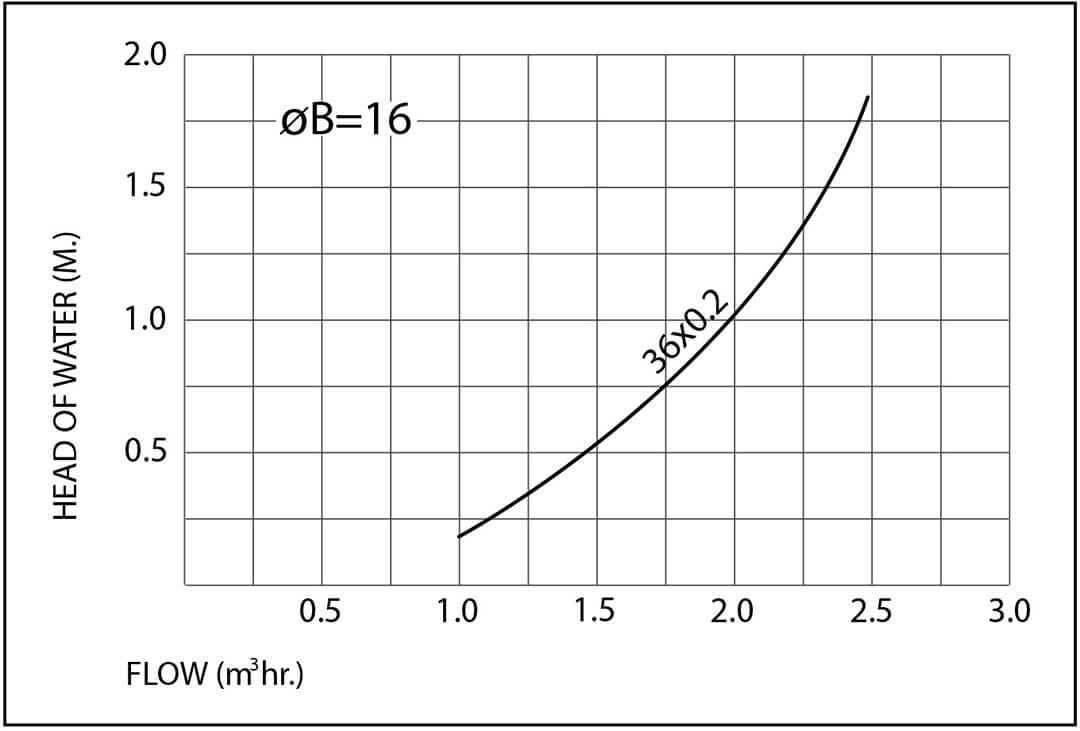

STANDARD FLOW: Standard 1.1 cum/hr/unit at 0.25 M Ws, Maximum 2.3 cum/hr/unit at 1.50 M Ws.
